OUR STANDARD ENCLOSURE SYSTEMS
We offer two standard systems for enclosures of any dimension. To create these enclosures, Front Panel Designer includes a housing tool that enables you to create all the housing sections you need with just a few clicks and to select the right accessories. These enclosures can be designed as tabletop or 19" rack enclosures. And of course, you are free to design all the housing sections any way you want. In addition to the standard enclosures, customised enclosure types are also available (e.g. console enclosures, fold-out housings, housings milled from solid material).
HOUSING WITH SIDE PROFILES
This housing is assembled from two identical side profiles with fixed heights (either 42 mm or 56 mm), two side panels and two cover panels. The width and depth of the housing can be freely defined. The matching assembly kit can be included in delivery. This enclosure enables circuit boards to be inserted.
Housing with side profiles
HOUSING WITH ENCLOSURE PROFILES
This housing is assembled from four housing profiles, two side panels and four cover panels. The width, height and depth of the housing can be freely defined. The matching assembly kit can be included in delivery. This enclosure can be designed with a removable housing lid.
Housing with enclosure profiles
SKAARHOJ SCHAEFFER HOUSING SCRIPT
The housing tool included in Front Panel Designer is based on script developed by the company SKAARHOJ. Editable script is included in delivery. SKAARHOJ has also written other scripts that you can download, use and edit. These scripts create other types of housing and are introduced and explained by Kasper Skårhøj here.
Housing with side profiles
Housing with side profiles
Enclosures with side profiles of 42 mm or 56 mm in height are easy to put together using the Schaeffer Housing Script.
Housing with enclosure profiles
Housing with enclosure profiles
For enclosures with freely definable dimensions or removable side sections, housings with enclosure profiles are the right choice.
Desk housing
Desk housing
Console enclosures are more demanding in terms of planning. The script saves you the bothersome calculations.
19" rack housing
19" rack housing
Enclosures for installing 19" racks are also possible using the housing script.
U-housing
U-housing
The folding principle provides an inexpensive alternative: Create housings from only two front panels, which you fold along bending grooves to form two U-profiles that can be put together.

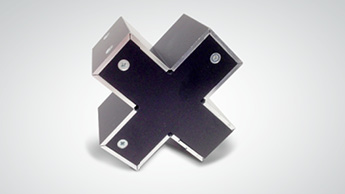

Free contour housing
Free contour housing
The Schaeffer Housing Script even creates complex housings for you based on a defined free contour.
RASPBERRY PI HOUSING
Based on his folding enclosure scripts, Kasper Skårhøj has developed a script for us especially for the Raspberry Pi. You can, of course, also use the principle of this housing for other applications.
Enclosure for a Raspberry Pi
